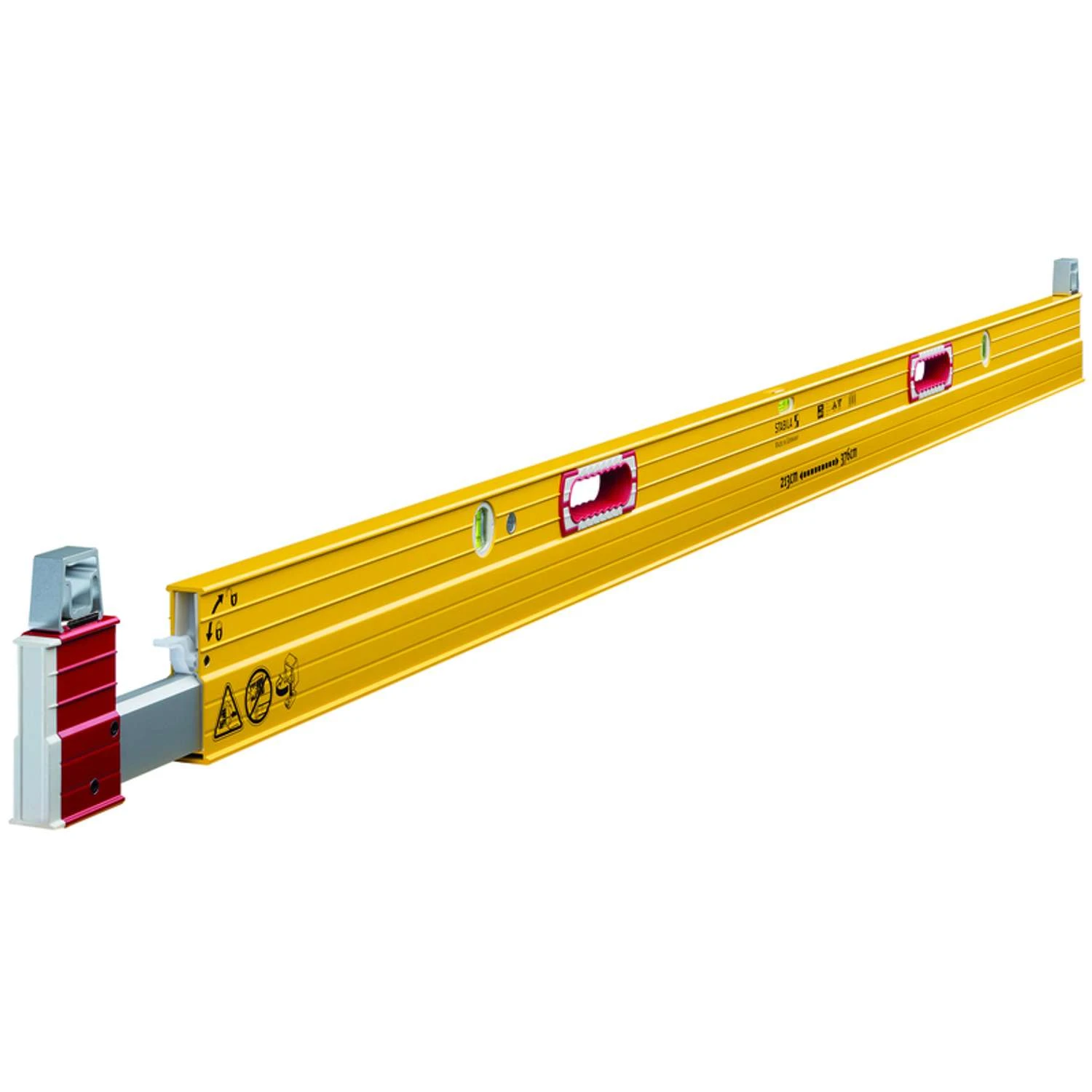

STABILA 144 In. Aluminum Type 106T Plate Level 3 Vial

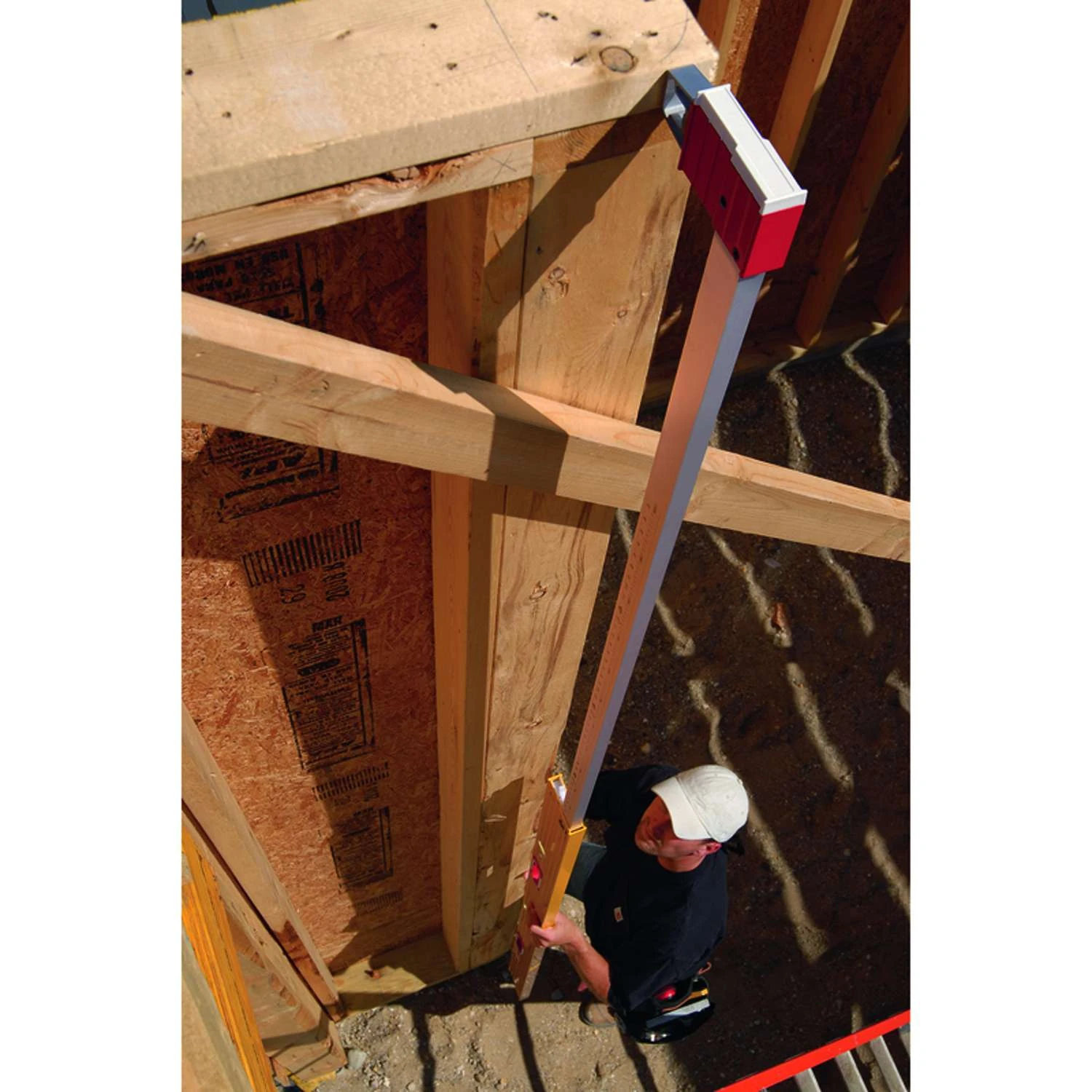

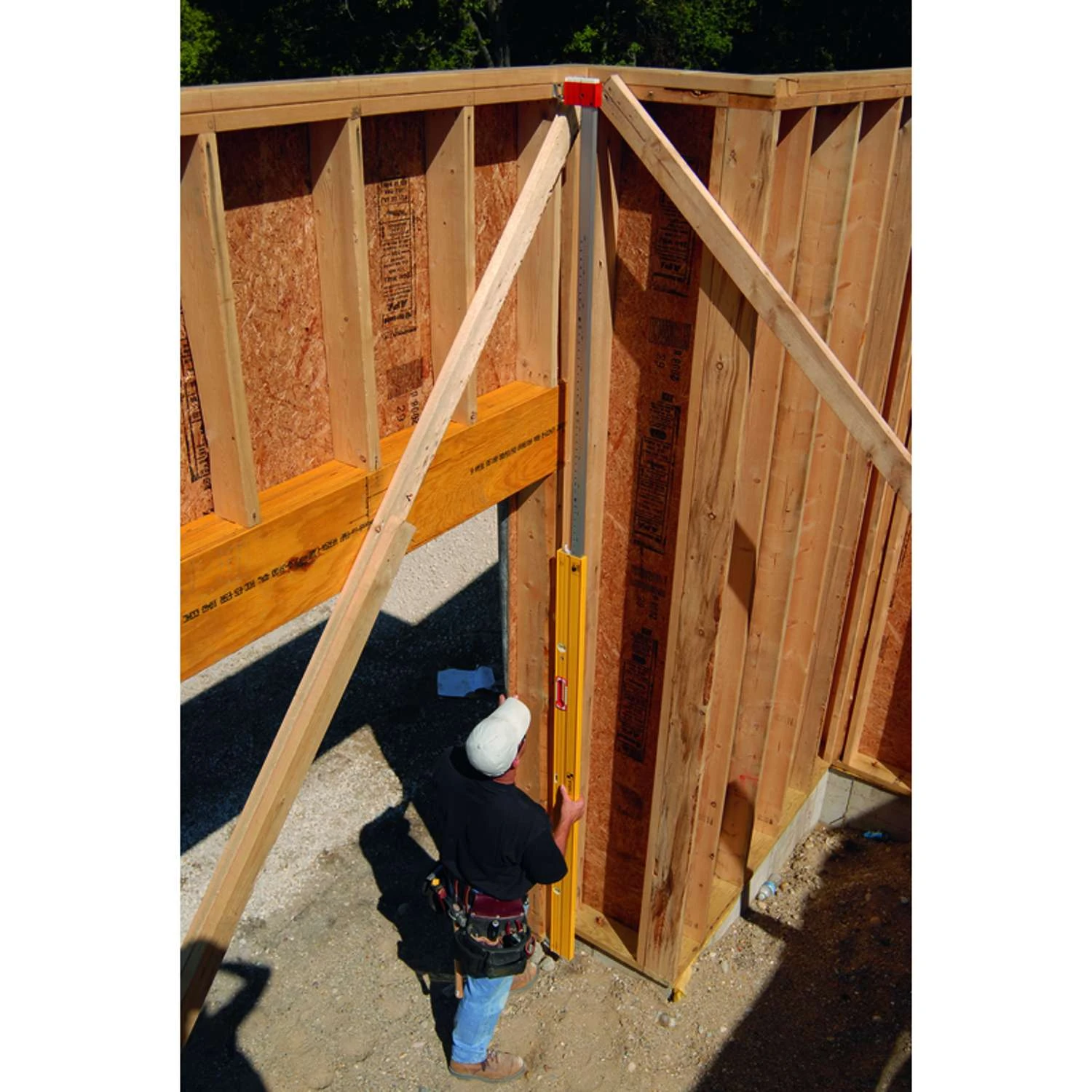

Stabila’s type 106 T Plate Levels are extendable spirit level tools. These levels have telescoping poles that adjust from 7 to 12 feet. Stabila’s type 106 T Plate Levels feature strong multi-chamber aluminum frames with reinforcing ribs, bridged horizontal vials, extension poles with scales printed on both sides, removable stand-offs, very accurate matched vials that ensure both plumb readings are the same when leveling, ergonomic handles and plastic end caps. Among other things, Plate Levels are great for plumbing walls.

Extendable spirit level with stable 3-chamber aluminum rectangular profile and fixed spacers to even out irregularities on objects

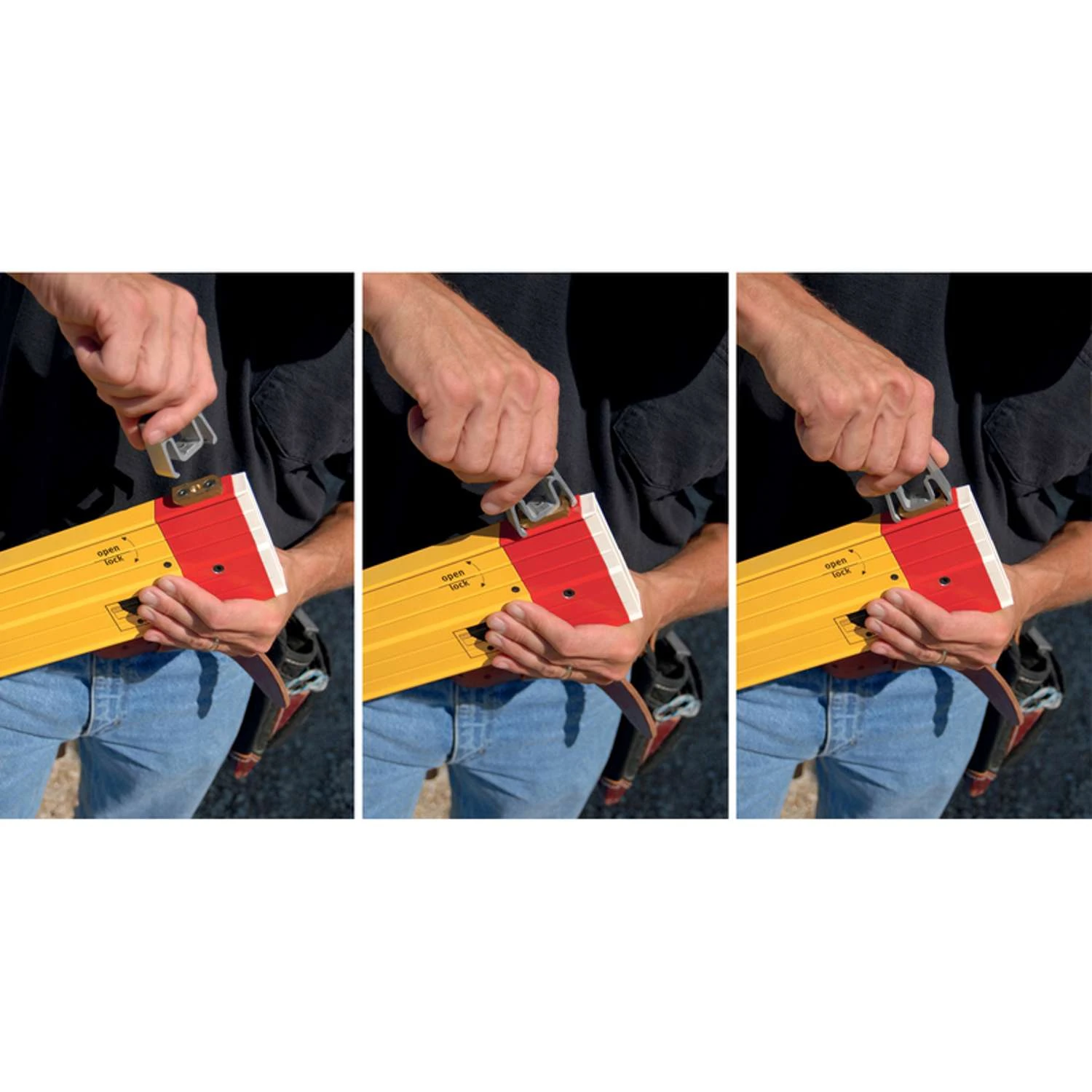

Removable 1-5/8″ stand-offs allow you to work around diagonal wall braces

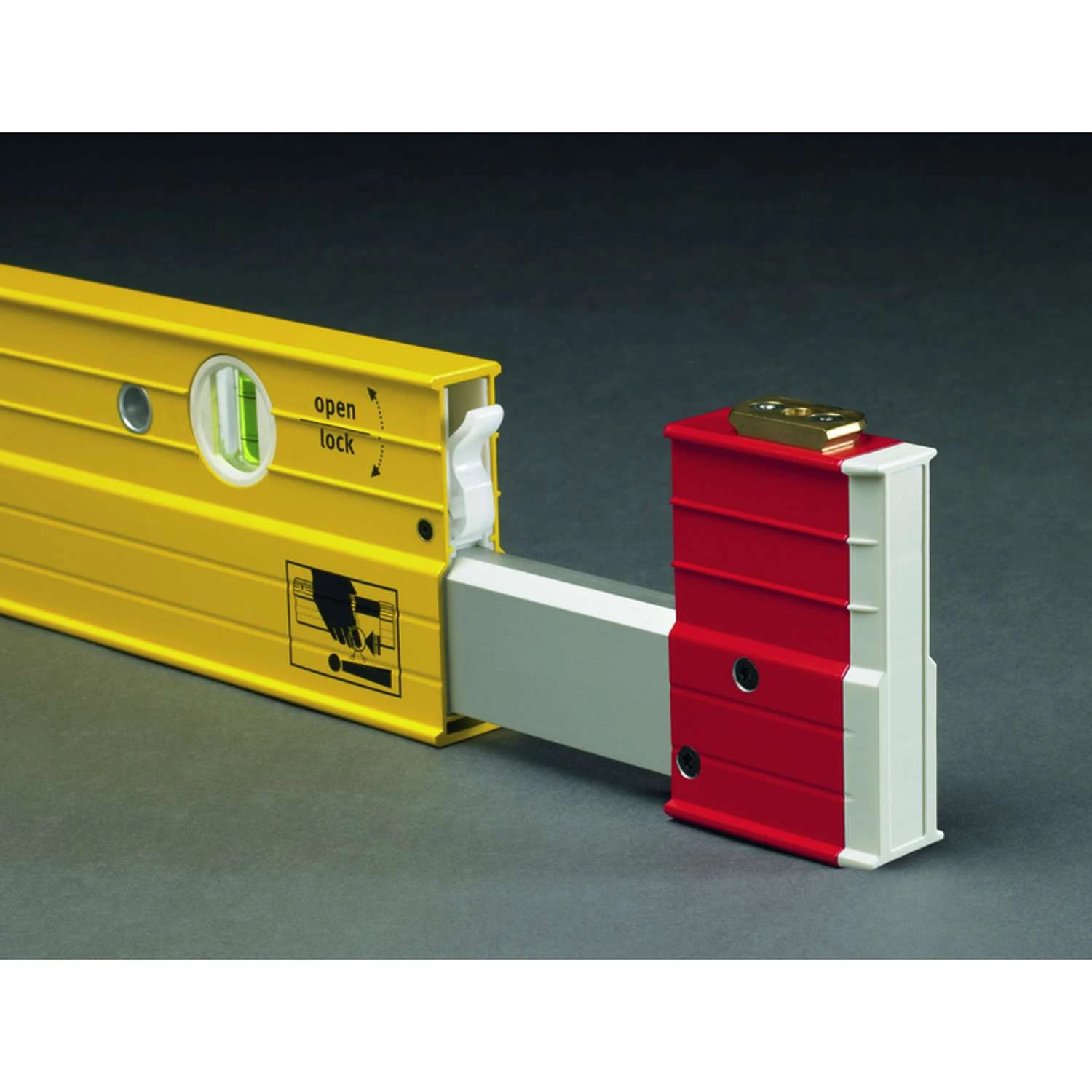

Fully sealed solid rail (six sided) extension eliminates deflection and delivers the smoothest extension movement available

Stabila installation technology ensures long-term accuracy – measuring accuracy in normal position (retracted) is 0.5 mm/m ( 1/32 inch over 72 inch) and 0.75 mm/m ( 3/64 inch over 72 inch) in reverse position (retracted)

Plastic end caps protect the profile against impact

Positioning scale on both sides of the extension pole for fast set-ups: 9 ft. 1 in., 10 ft. 1 in. etc.

Continuous bridge over the horizontal vial increases the stability of the profile

Measurement accuracy in extended normal position 1 mm/m (1/8 inch over 120 inch)

1 horizontal vial, 2 vertical vials, 2 measuring surfaces, 2 finger-grip openings, telescopic support and slip-on spacers
